Product - ULTRASONIC ANEMOMETER AR200P
No images available
- Brand
- Theta Instruments
- Description
The AR200P is a robust, reliable ultrasonic anemometer providing surface wind speed and direction measurements, meeting WMO CIMO Guide (WMO-No.8) requirements. Constructed entirely of 316L stainless steel and equipped with a 24V@5A heater, it ensures reliable operation in challenging environmental conditions.
Detailed Description
HIGH PRECISION AND SPEED
- The AR200-FD/AR200P utilizes ultrasonic time-of-flight measurements to detect wind-induced signal variations, enabling rapid analysis of wind patterns for efficient wind turbine control.
HIGH RELIABILITY
- AR200-FD/AR200P has NO moving parts, significantly reduces operating costs and increases the reliability of wind measurement over long periods of times.
MAINTENANCE-FREE
- The AR200-FD/AR200P delivers precise performance even in extreme weather conditions, as proven by customer deployments. An integrated heater ensures reliable data acquisition even below freezing temperatures, mitigating the impact of ice on measurement accuracy, a critical feature for wind turbines in cold climates.
Specifications
| Wind Speed | |
| Measurement Range | 0 … 75 m/s |
| Accuracy | 0 … 60 m/s: ±0.2 m/s or 2% of reading, whichever is greater; 60 … 75 m/s: ±4% of reading |
| Resolution | 0.1m/s |
| Wind Direction | |
| Measurement Range | 0 … 359.9° |
| Accuracy | ±2° |
| Resolution | 0.1° |

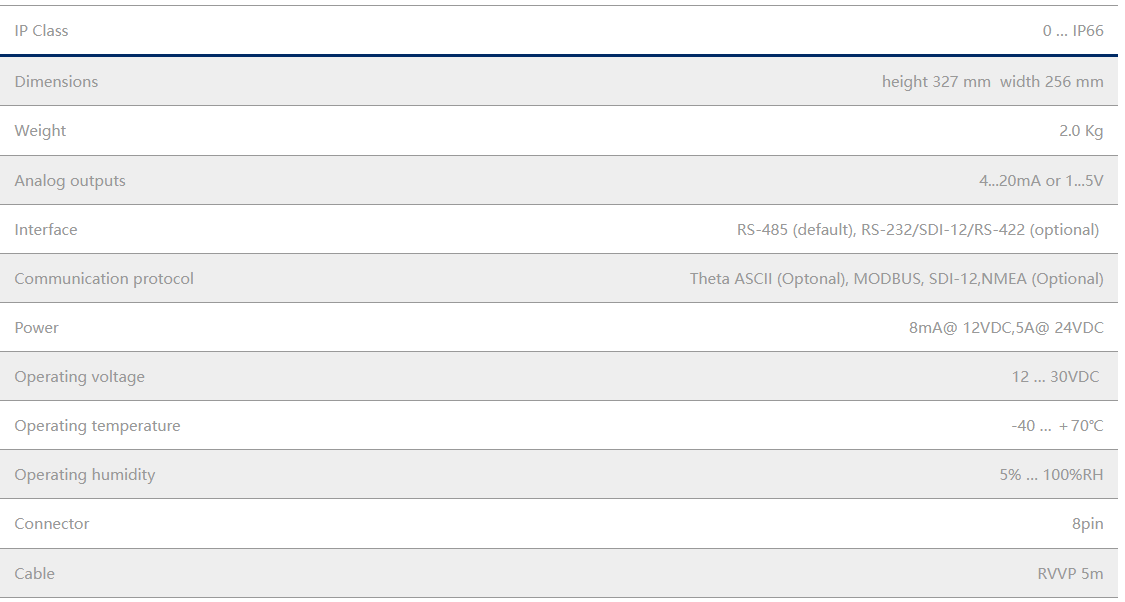

General
