Product - ULTRASONIC ANEMOMETER AR200-FD
No images available
- Brand
- Theta Instruments
- Description
The AR200-FD ultrasonic anemometer, designed for the wind power industry, provides precise and maintenance-free wind speed and direction measurements. Its aluminum alloy and Teflon-coated housing ensure durability, making it suitable for various applications including coastal and marine environments, container ports, power transmission stations, airports, bridges, tunnels, and urban areas. The AR200 series also offers similar capabilities.
Detailed Description
Features
- IP66
- Optional to remove heating function
- Optional to remove analog output
- No moving parts and maintenance-freeHigh accuracy
- Aluminum alloy with teflon coatingLow power consumption
Specifications
| Wind Speed | |
| Measurement Range | White columns: 0 … 60m/s; Blue columns: 0 … 75 m/s |
| Accuracy | 0 … 60 m/s: ±0.3 m/s or 3% of reading, whichever is greater; 60 … 75 m/s: ±5% of reading |
| Resolution | 0.1m/s |
| Wind Direction | |
| Measurement Range | 0 … 359.9° |
| Accuracy | ±3° |
| Resolution | 0.1° |

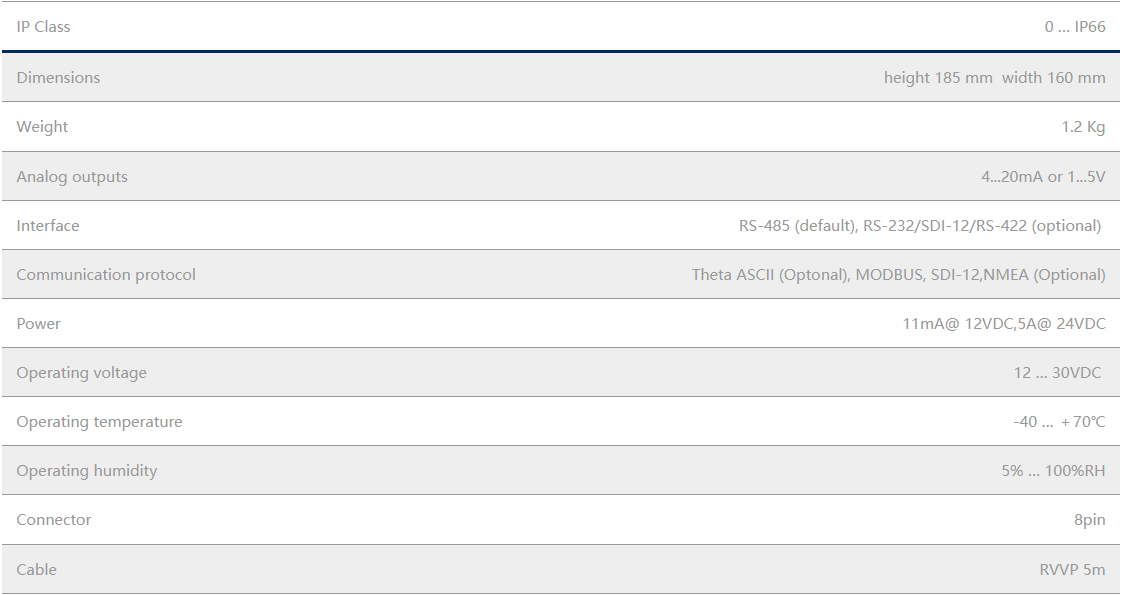

General
