Product - AIO WS Series Weather Station (WS-500, WS-600, WS-601, WS650)
No images available
- Brand
- Theta Instruments
- Description
The WS Series compact weather sensors, constructed from corrosion-resistant polycarbonate, offer a robust design ideal for weather monitoring applications in power transmission, agriculture, and urban environments.
Detailed Description
The WS sensors are maintenance-free, lightweight, and cost-effective, providing durable measurement performance with no moving parts. Users can select parameters to match specific application needs. Built-in data pre-processing, a universal interface, and selectable output protocols simplify installation and integration into third-party systems. Analog output options are also available.
Specifications
Comparison
| Model | Wind Speed & Direction | Temperature | Relative Humidity | Air Pressure | Rainfall (Photoelectricity) | Rainfall (Piezoelectricity) | Solar Radiation |
| WS-500 | ✔ | ✔ | ✔ | ✔ | |||
| WS-600 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| WS-601 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| WS-650 | ✔ | ✔ | ✔ | ✔ | ✔ |
Specification
| Wind Speed | |
| Measurement Range | 0...45m/s |
| Accuracy | ±0.3 m/s or 3% of reading, whichever is greater |
| Resolution | 0.1m/s |
| Wind Direction | |
| Measurement Range | 0 … 360° |
| Accuracy | ±3° |
| Resolution | 0.1° |
| Temperature | |
| Measurement Range | -40 … +80 ℃ |
| Accuracy | ±0.5 ℃ |
| Resolution | 0.5℃ |
| Relative Humidity | |
| Measurement Range | 0 … 100%RH |
| Accuracy | ±3%RH |
| Resolution | 0.1 %RH |
| Air Pressure | |
| Measurement Range | 10 … 1100 hPa |
| Accuracy | ±0.5 hPa |
| Resolution | 0.1 hPa |
| Rainfall (Optional) | |
| Measurement Range | Piezo:0 … 200mm/h , Photo:0 … 400mm/h |
| Accuracy | ±5% |
| Resolution | 0.1 mm/h |
| Solar Radiation (Optional) | |
| Measurement Range | 0 … 2000W/㎡ |
| Spectral Range | 300nm … 2100nm |
| Non-linearity error | ≤3％ |
| Accuracy | ±5% |
| Resolution | 1W/㎡ |

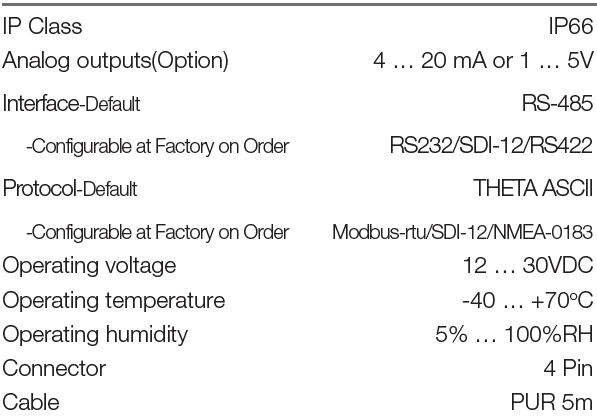

General
